Saturday, August 7, 2010

Forms Modified to Fit Site D, D1, E

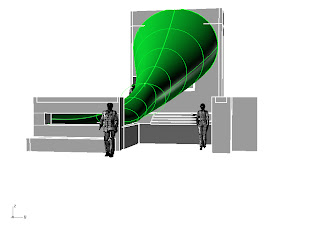

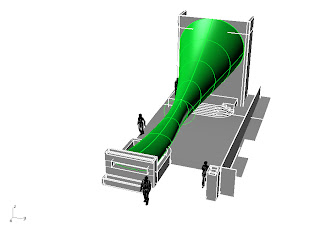

E
(big front, small back)
with lower front ring..... height of existing steel supports are 9'3" from the ground, which is set as the center point of the front ring. (Note problem with the fountain here, which would lower the max. size of the front ring to 13', compared to the 18.5' that is shown in these models)


D1
(small front, large back)
with lower back ring.....


D2
Tighter "waistlines"
